160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty
Ürün ayrıntıları:
| Menşe yeri: | Guangdong, Çin |
| Marka adı: | JINTONG |
| Model numarası: | JTT-1600R |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 parça |
|---|---|
| Fiyat: | $53,500-56,000 / piece |
|
Detay Bilgi |
|||
| Plastikleştirme Kapasitesi: | 400 gr/sn | Kalıp Yüksekliği: | 260 - 530mm |
|---|---|---|---|
| Ejektör vuruşu: | 75 mm | İtici Kuvvet: | 34 kN |
| Atış hacmi: | 570 cm³ | Enjeksiyon oranı: | 202 g/sn |
| Enjeksiyon ağırlığı: | 513 gr | Vida hızı: | 1 - 155 dev/dak |
| Vida çapı: | 55 mm | D / D viski: | 28 |
| Kravat Çubuğu Mesafesi: | 660 mm | Makine ağırlığı: | 7000 kilo |
| Açık Kontur: | 500 mm | Güç: | 22 kW |
| Makine boyutları: | 2.8*2.1*3.4 m | ||
| Vurgulamak: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
Ürün Açıklaması

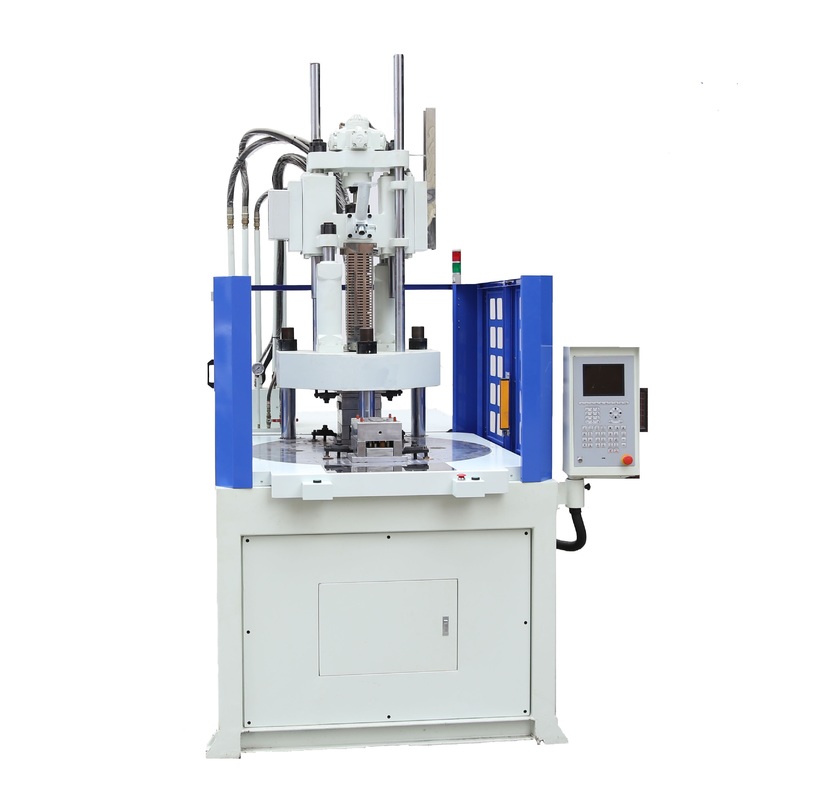

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)
Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
Packaging & Delivery
