Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity
Ürün ayrıntıları:
| Menşe yeri: | Guangdong, Çin |
| Marka adı: | JINTONG |
| Model numarası: | JTT-1200R |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 parça |
|---|---|
| Fiyat: | $32,000-40,000 / piece |
|
Detay Bilgi |
|||
| Plastik işlenmiş: | PP, ABS | Plastikleştirme Kapasitesi: | 250 g/s |
|---|---|---|---|
| Kalıp Yüksekliği: | 150 - 520 mm | İtici Numarası: | 2 |
| Ejektör vuruşu: | 75 mm | İtici Kuvvet: | 27kN |
| Atış hacmi: | 410 cm³ | Enjeksiyon oranı: | 202 g/sn |
| Enjeksiyon ağırlığı: | 369 gr | Vida hızı: | 1 - 220 rpm |
| Vida çapı: | 50 mm | D / D viski: | 25 |
| Kravat Çubuğu Mesafesi: | 620 mm | Makine ağırlığı: | 5500 kilo |
| Güç: | 24,5 kw | ||
| Vurgulamak: | 2 Stations Vertical Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine |
||
Ürün Açıklaması
Rotary Table Vertical Plastic Injection Molding Machine 120T

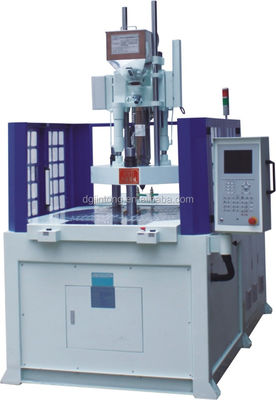

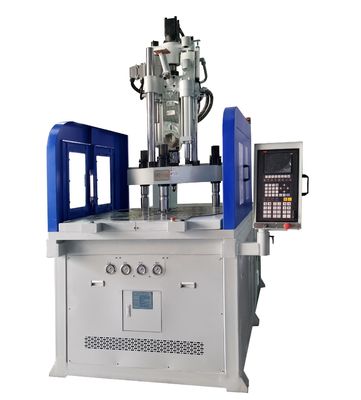

Rotary table vertical injection molding machine JTT-1200R
| Clamping Force | 120T |
| Injection Weight | 237-369g |
Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.
Main Features
- Vertical clamping and vertical injection design
- Adjustable clamping force, injection weight and shot speed to meet production requirements
- Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
- Optimized for operating insert parts and improving productivity
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Reduces cooling water quantity by at least 55% compared to similar models
- Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
- Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
Packing & Delivery
