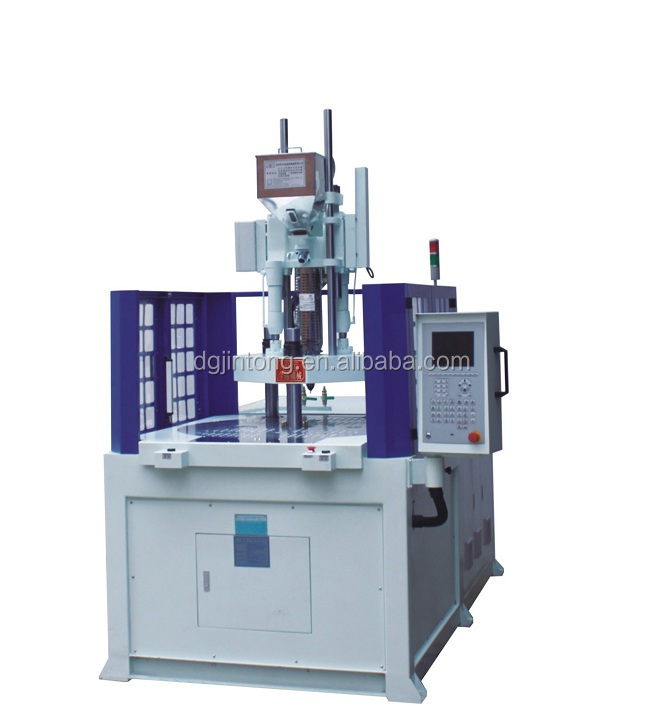

55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Ürün ayrıntıları:
| Menşe yeri: | Guangdong, Çin |
| Marka adı: | JINTONG |
| Model numarası: | JTT-550R |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 parça |
|---|---|
| Fiyat: | $19,000-21,000 / piece |
|
Detay Bilgi |
|||
| Plastikleştirme Kapasitesi: | 150 g/s | Kalıp Yüksekliği: | 160 - 300 mm |
|---|---|---|---|
| İtici Numarası: | 2 | Ejektör vuruşu: | 60 mm |
| İtici Kuvvet: | 1.8 kN | Teorik Çekim Hacmi: | 170 cm³ |
| Enjeksiyon oranı: | 113 g/sn | Enjeksiyon ağırlığı: | 141 gram |
| Vida hızı: | 0 - 215 dev/dak | Vida çapı: | 40 mm |
| Vida L/D oranı: | 22 | Bağlantı Çubukları Arası Mesafe: | 510 mm |
| Ağırlık: | 2400 kilo | Açık Kontur: | 540 mm |
| Güç: | 12,8 kW | ||
| Vurgulamak: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Ürün Açıklaması
Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
